GL Switch PCB

$19.75 USD
by ASIndo.pro

this PCB is Design for Fixed Spacing

For Variable Spacing, please use GL Harness

this is a preorder, start shipping from 9 March 2026
Even you still can use Harness for Fixed switch spacing configuration, a PCB will help to connect and disconnect lever quicker, easier, and more secure.
Size is 90 X 90 X 9mm, and when installed it only add less than 2mm thickness. Just make sure your enclosure has enough space to accommodate 90X90mm.

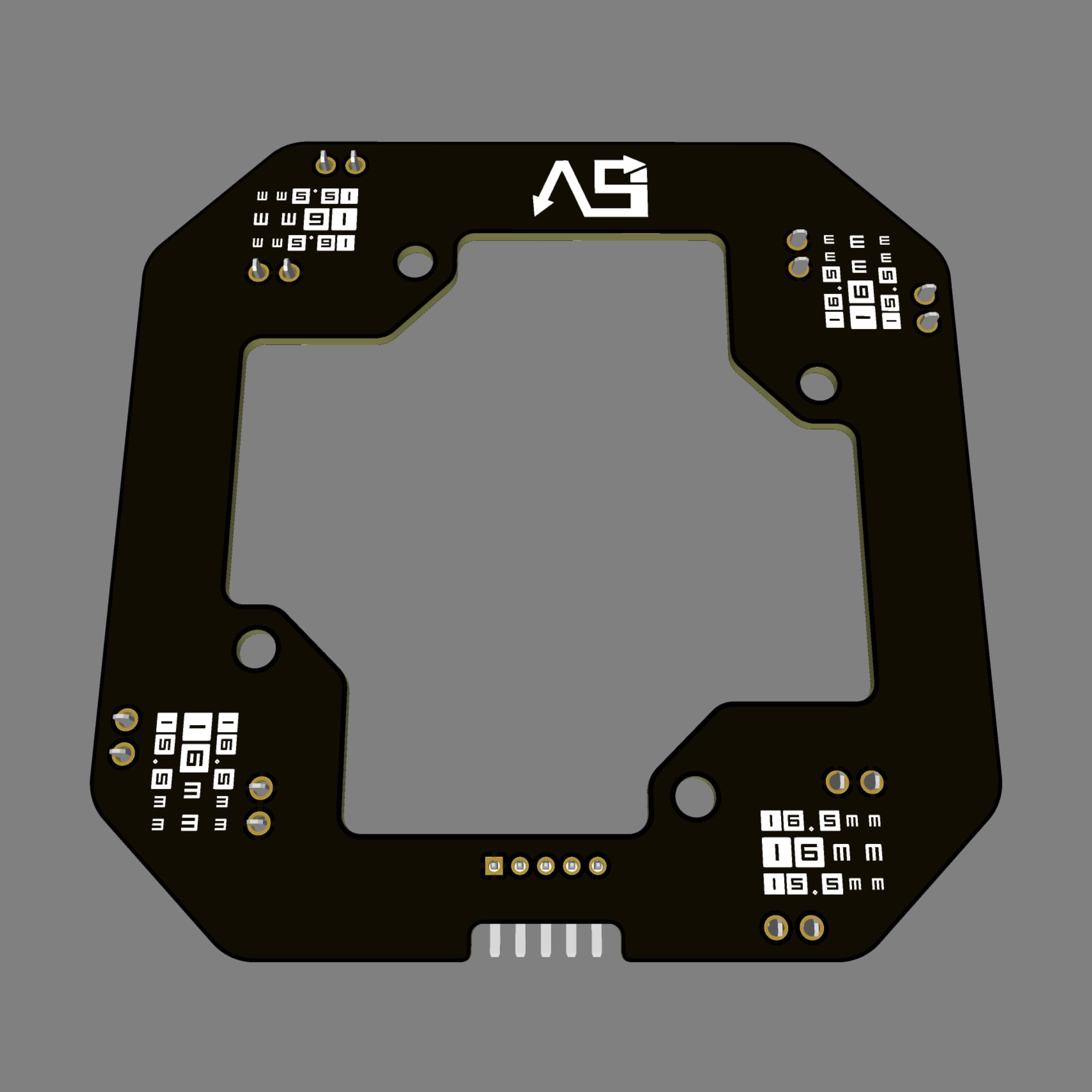

GL Switch PCB designed to be adaptive for slight spacing variance and makes it compatible for +- 0.5 spacing. For example, a 16mm PCB also can be use for 15.5mm (GL Base) and 16.5mm spacing (Fanta Base).
It is good to keep a dedicated PCB for each Base, unless you want to swap switches there is no need to remove Switch PCB.

Even it is not designed for Variable spacing, some users successfully install this PCB on their Variable spacing.

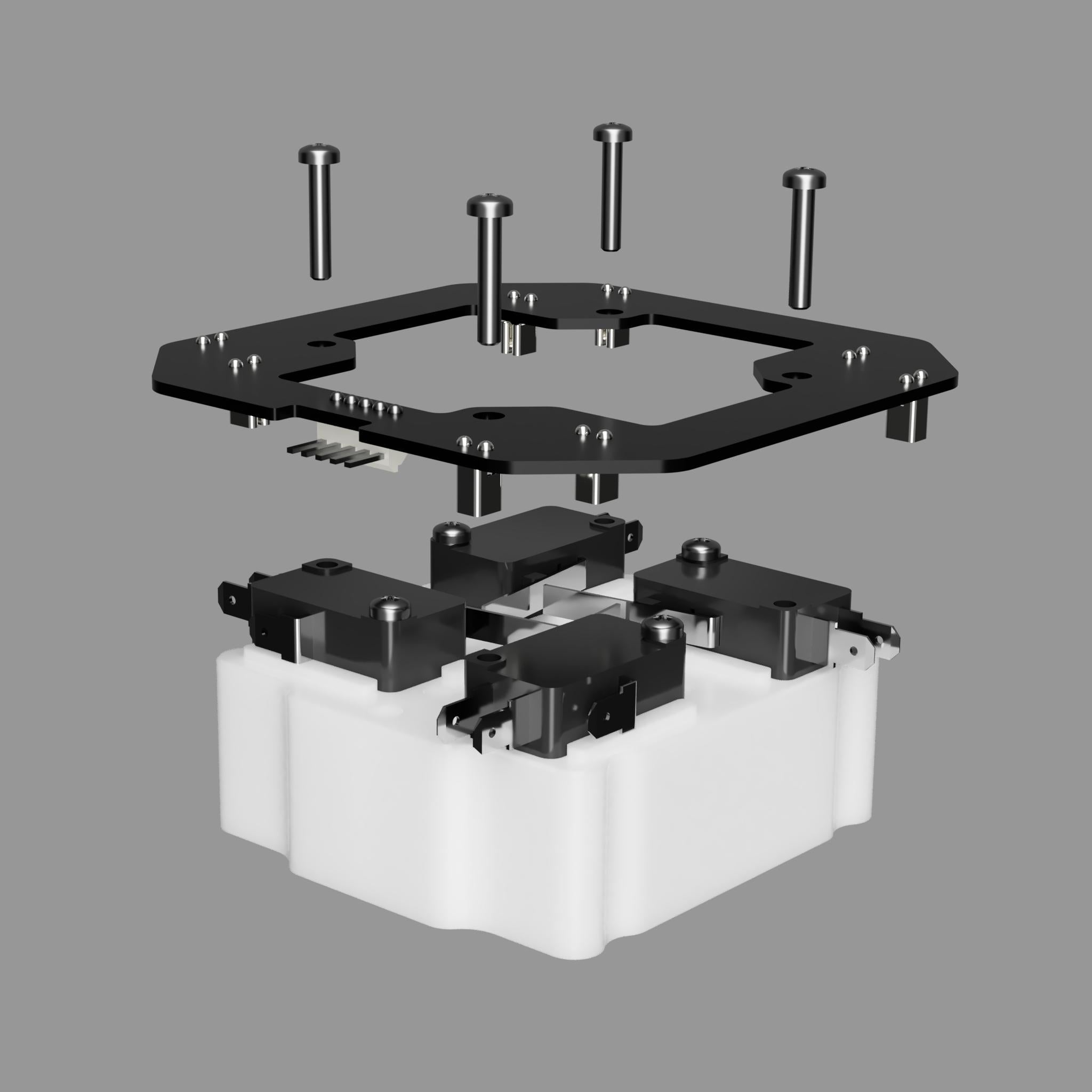

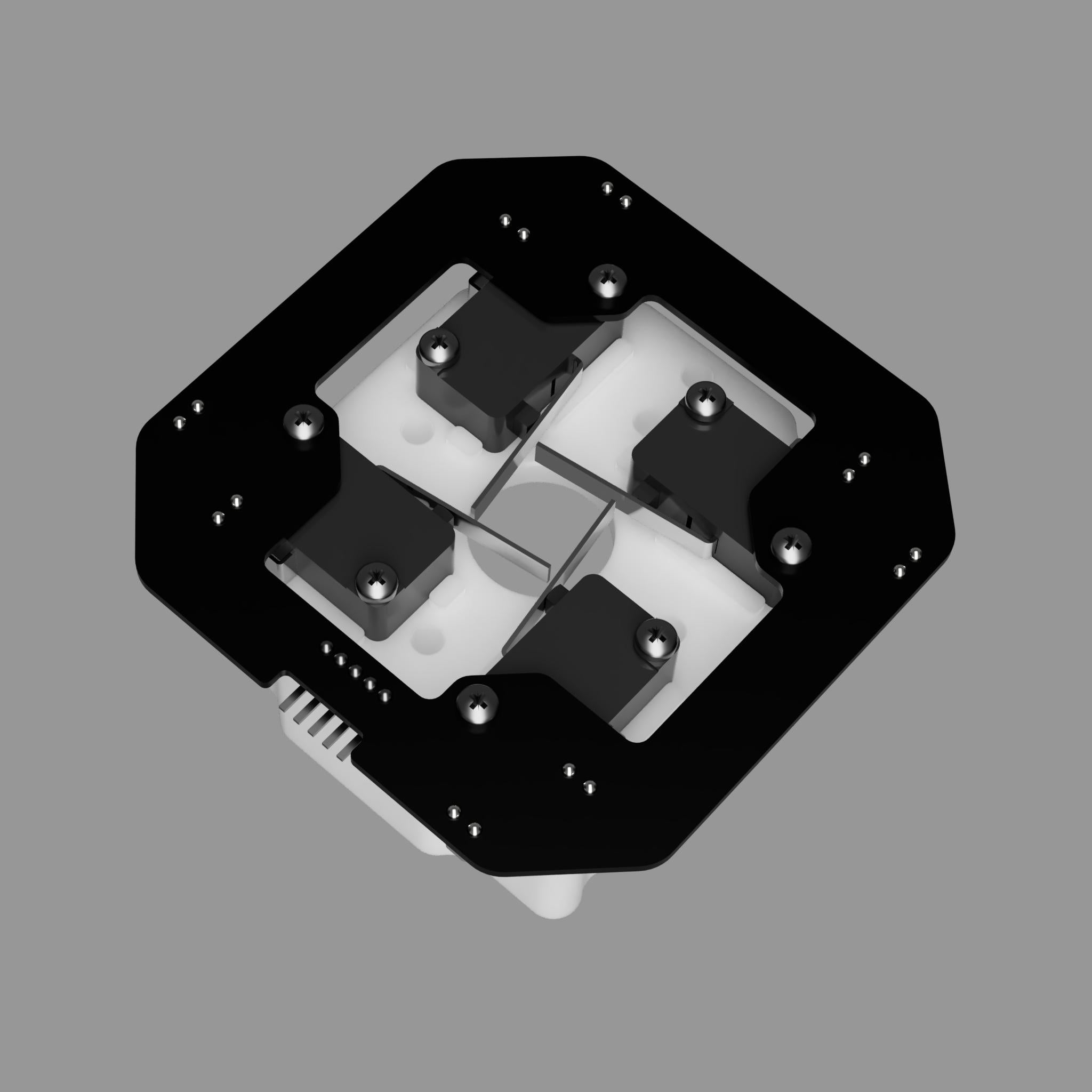

Set the switch spacing first, then remove some screws so the PCB can be installed, then put back the screws to secure the switches.
